AHD 720P MDVR GPS Wi-Fi SD CARD MOBILE DVR MDVR 3G 4G WIFI Optional for Vehicle Surveillance

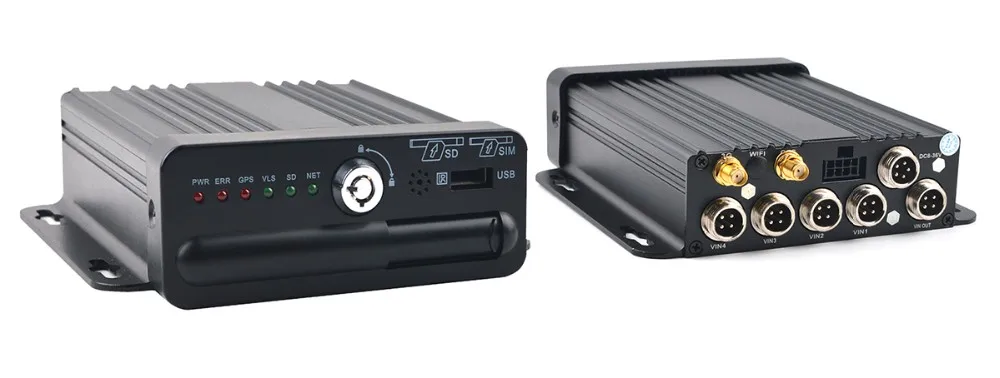

M10H is a cost-effective H.264 SD card Mobile DVR specially designed for vehicle surveillance application. Its mini size is suitable for small space deployment. It adopts high speed processor hardware and embedded Linux system. This mini mobile dvr has robust hardware for anti-shock and rich functions with simple deploy and reliable work. The special file system is good for video data and provides self-recovery, self-check and self-backup for all critical data.
1. Industrial-grade design with super mini size 2. Wide voltage support over-load, short circuit, reverse connect protention. 3. Support SD card up to 256G for record storage. 4. 4G/Wifi transmit; multiple grade image quality transmitting option. 5. GPS/BD/GLONASS global positioning. 6. Powerful software platform including remote preview, playback, broadcast, talk and more
Setup system parameters through the remote controller.
English, Chinese (option customized)
Administrator and user password supported
Video and preview

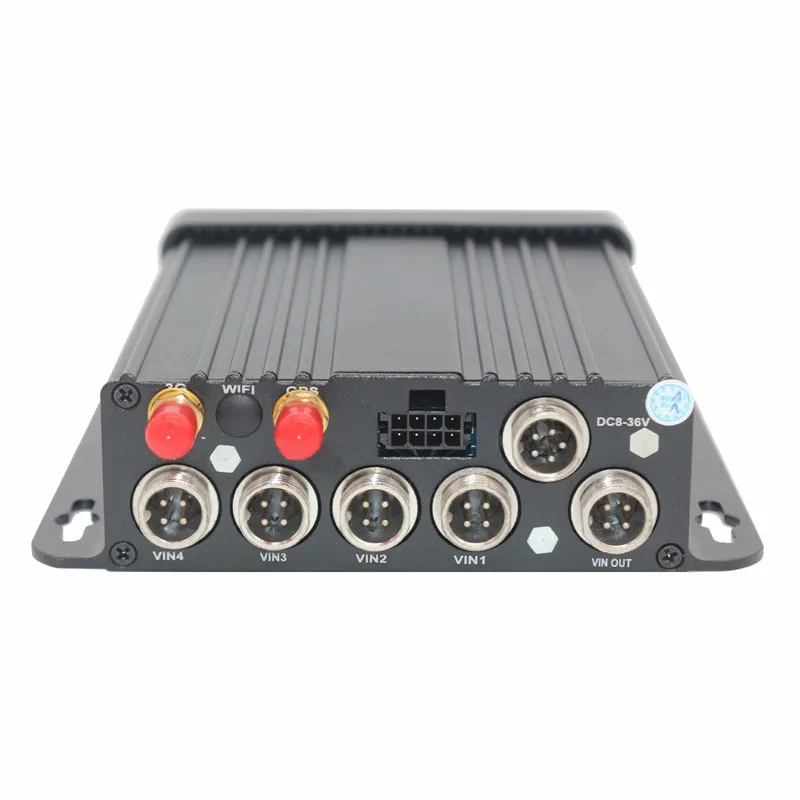

4 channel input; 1 channel output; 1.0Vp-p, 75Ω
Overlays letters... like date & time information and vehicle ID into video streaming
Video Compression Criteria
H.264.With Hisilicon technology
Support 1 channel and 4 channels preview.
PAL: 25Frame/s NTSC:30Frame/s
Support 720P D1 CIF
Video Bit Rate
CIF: 256Kbps ~ 1.5Mbps, 4 quality level support,
2 channel input;1 channel output
Support 1pcs SD card up to 256G
Default auto recording after power on, support timed recording, alarm recording.
Search video by time, type (normal or alarm), target SD card
Support 1 to 4 channels playback simultaneously
Support forward and backward at the speed of: x2, x4,
x8, and x16.
Support up to 3 channels alarm input
include the recording within 10 seconds ahead of the alarm starting, and the recording after alarm dynamically adjusted
Alarm of storage
Support storage alarm
The alarm of video loss
Upgrade by SD card or USB
2. System power off according to the delay time
With overload protection, under voltage protection,short protection,
DC:+8V ~ +36V
The normal state<10W;Standby 0W
-25℃ ~ +60℃
10% to 95%
128(W) x40(H) x135(D) mm (with bracket installation)
104(W) x40(H) x135(D)mm (No bracket installation)
Mobile DVR M51
Mobile DVR M12H
Mobile DVR M52
Shenzhen Citops Communication System Inc. (Short as Citops System) is the leading integrated video communicated system solution provider, incorporates search and development, design, production and sales. Providing advanced overall security monitoring products and premium service. Devoted to providing Citops solution based on video security monitoring for different fields such a Finance, Public transportation, Transport, Education, Consumer, Justice system, Telecom, Police, etc. Serve customers all over the world with best efficiency, highest security and best service.
Application diagrams, all our products can integrated with our CMS:
